Dosatron proportional dispensers D25
Proportional dispensers D25 from Dosatron are very well suited for precise dispensing of liquids. The dosing devices operate without current and are driven solely by the flowing water. The motor drives a piston in the dosing adjustment and in this way feeds the medium to be dosed. The
Dosatron dosing units are very precise and reliable, even in the case
of pressure fluctuations, thanks to the pure-quantity-proportional
drive. The desired dosage rate can be changed very easily at the dosage adjustment.
The dosing pumps D25 are suitable for a reduction of 10 l/h up to a maximum of 2,5 m³/h. Depending on the design, a dosing range of 0,07 to 10% is possible.
We supply the Doastron proportional dispensers with different sealing and housing materials. If you would like us to help you with your choice, simply send us the
maximum flow rate, the desired dosing rate and the safety data sheet of
your medium by e-mail.
For further information, please refer to this document.

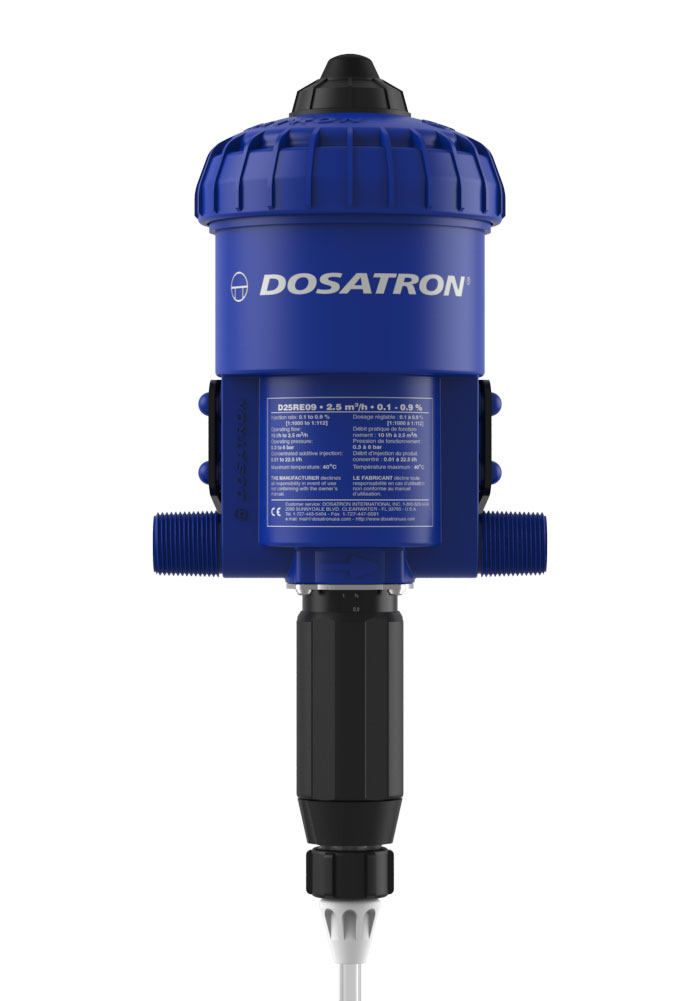

Dosatron D25RE09 VF proportional dispenser for applications with a flow rate up to 2,5m³ l/h and a dosing range of 0,1 - 0,9%.

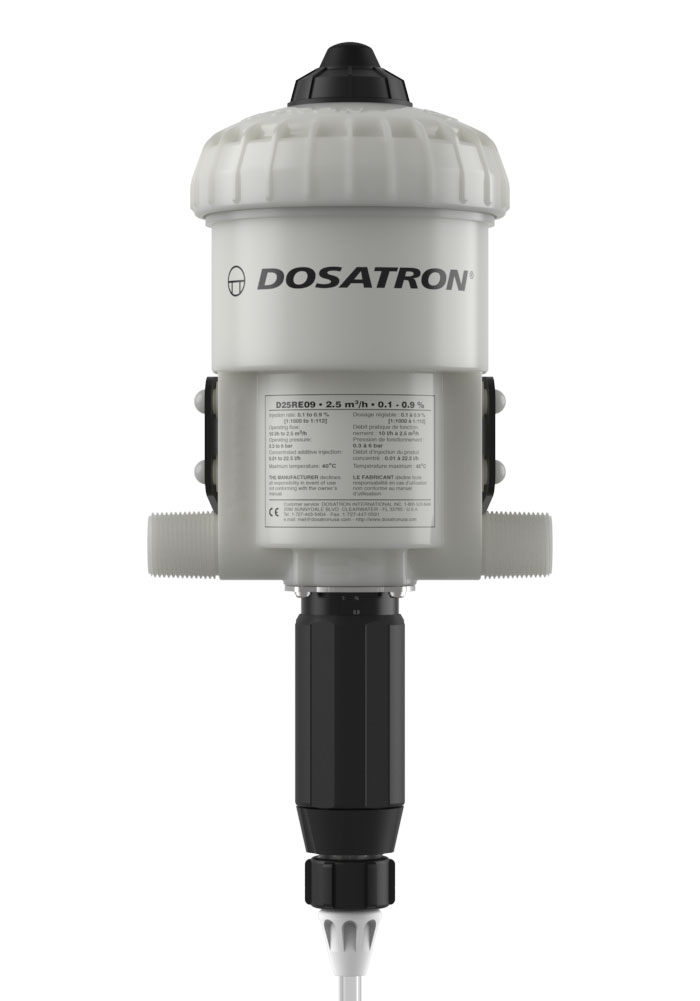

Dosatron D25RE09 AF proportional dispenser for applications with a flow rate up to 2,5m³ l/h and a dosing range of 0,1 - 0,9%.
Dosatron D25RE2 VF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 0.2 - 2%.
Dosatron D25RE2 AF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 0.2 - 2%.
Dosatron D25RE4 VF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 0,5 - 4%.
Dosatron D25RE4 AF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 0,5 - 4%.
Dosatron D25RE5 VF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 1 - 5%.
Dosatron D25RE5 AF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 1 - 5%.
Dosatron D25RE10 VF proportional dispenser for applications with a flow rate up to 2m³/h and a dosing range of 3 - 10%.
Dosatron D25RE10 AF proportional dispenser for applications with a flow rate up to 2m³/h and a dosing range of 3 - 10%.
The Dosatron DIA4E diaphragm proportional dispenser is suitable for the dosing of liquids in applications with a low inlet pressure.

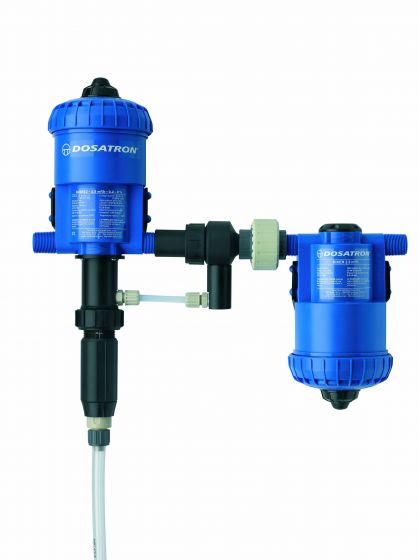

Dosatron polymer dispenser with external injection D25 RE2IEPO especially for the precise metering of polymers.

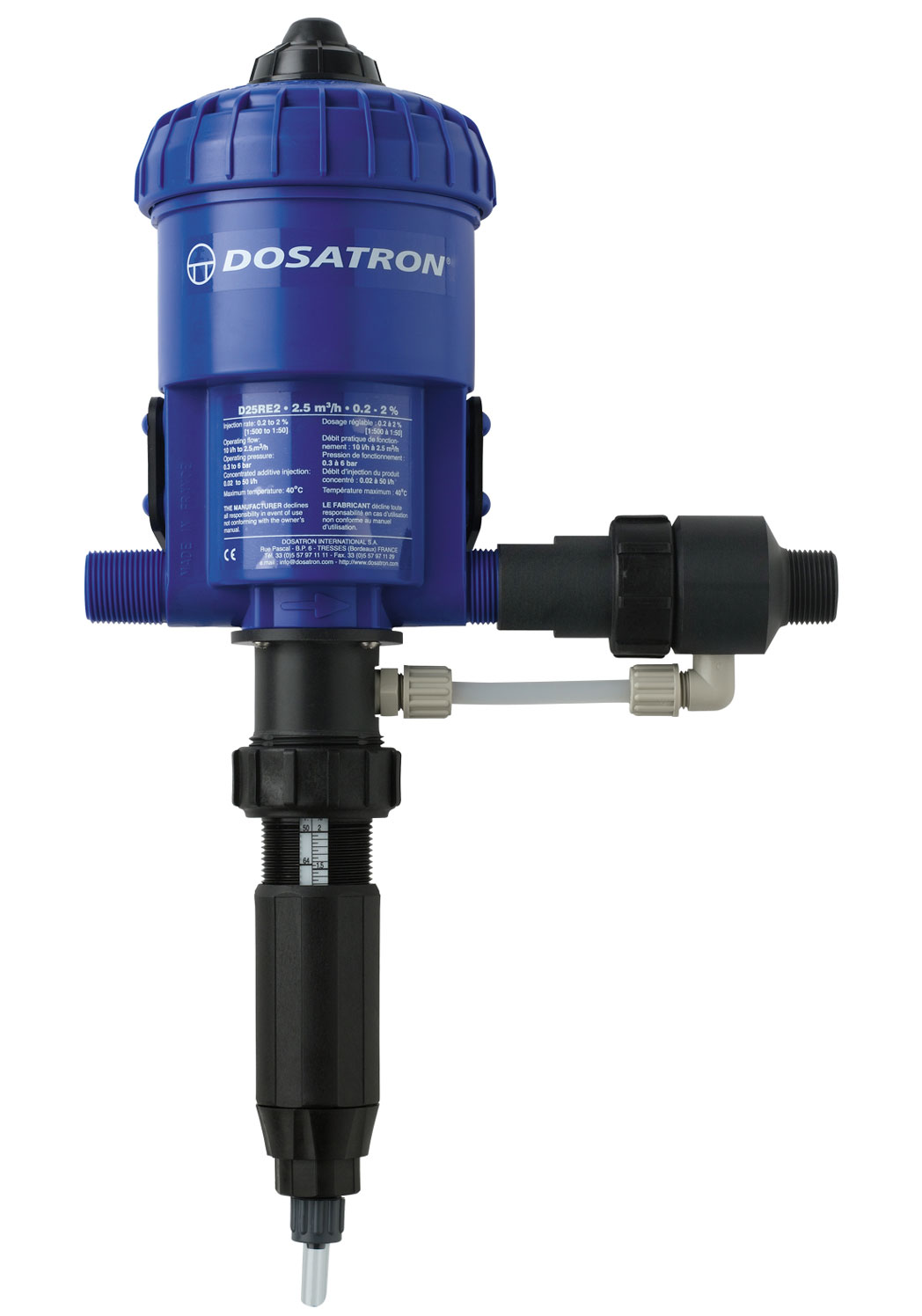

Dosatron D25RE2IE VF proportional dispenser with external injection for applications with a flow rate up to 2,5m³/h and a dosing range of 0.2 - 2%.
Dosatron D25RE2IE AF proportional dispenser with external injection for applications with a flow rate up to 2,5m³/h and a dosing range of 0.2 - 2%.
Dosatron D25RE5IE VF proportional dispenser with external injection for applications with a flow rate up to 2,5m³/h and a dosing range of 1 - 5%.
Dosatron D25RE5IE AF proportional dispenser with external injection for applications with a flow rate up to 2,5m³/h and a dosing range of 1 - 5%.
Dosatron D25RE10IE VF proportional dispenser with external injection for applications with a flow rate up to 2m³/h and a dosing range of 3 - 10%.
Dosatron D25RE10IE AF proportional dispenser with external injection for applications with a flow rate up to 2m³/h and a dosing range of 3 - 10%.
