Dosatron proportional dispensers D45
Proportional dispensers D45 from Dosatron are very well suited for precise dispensing of liquids. The dosing devices operate without current and are driven solely by the flowing water. The motor drives a piston in the dosing adjustment and in this way feeds the medium to be dosed. The
Dosatron dosing units are very precise and reliable, even in the case
of pressure fluctuations, thanks to the pure-quantity-proportional
drive. The desired dosage rate can be changed very easily at the dosage adjustment.
The dosing pumps D45 are suitable for a reduction of 100 l/h up to a maximum of 4,5 m³/h. Depending on the design, a dosing range of 0,03 to 8% is possible.
We supply the Doastron proportional dispensers with different sealing and housing materials. If you would like us to help you with your choice, simply send us the
maximum flow rate, the desired dosing rate and the safety data sheet of
your medium by e-mail.
For further information, please refer to this document.

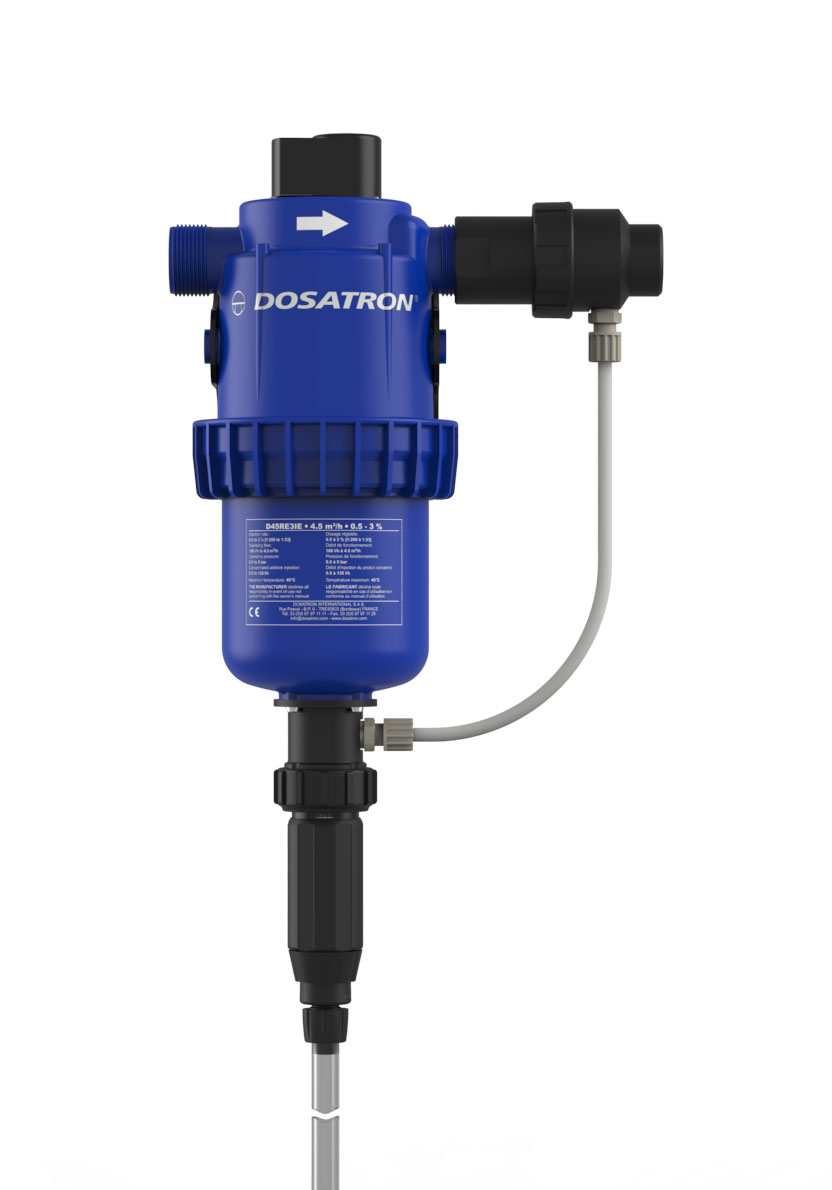

Dosatron D45RE3IE VF proportional dispenser with external injection for applications with a flow rate up to 100 l/h - 4.5m³/h and a dosing range of 0.5 - 3%.
Dosatron D45RE3IE AF proportional dispenser with external injection for applications with a flow rate up to 100 l/h - 4.5m³/h and a dosing range of 0.5 - 3%.
Dosatron D45RE8 AF proportional dispenser for applications with a flow rate up to 100 l/h - 4.5m³/h and a dosing range of 3 - 8%.

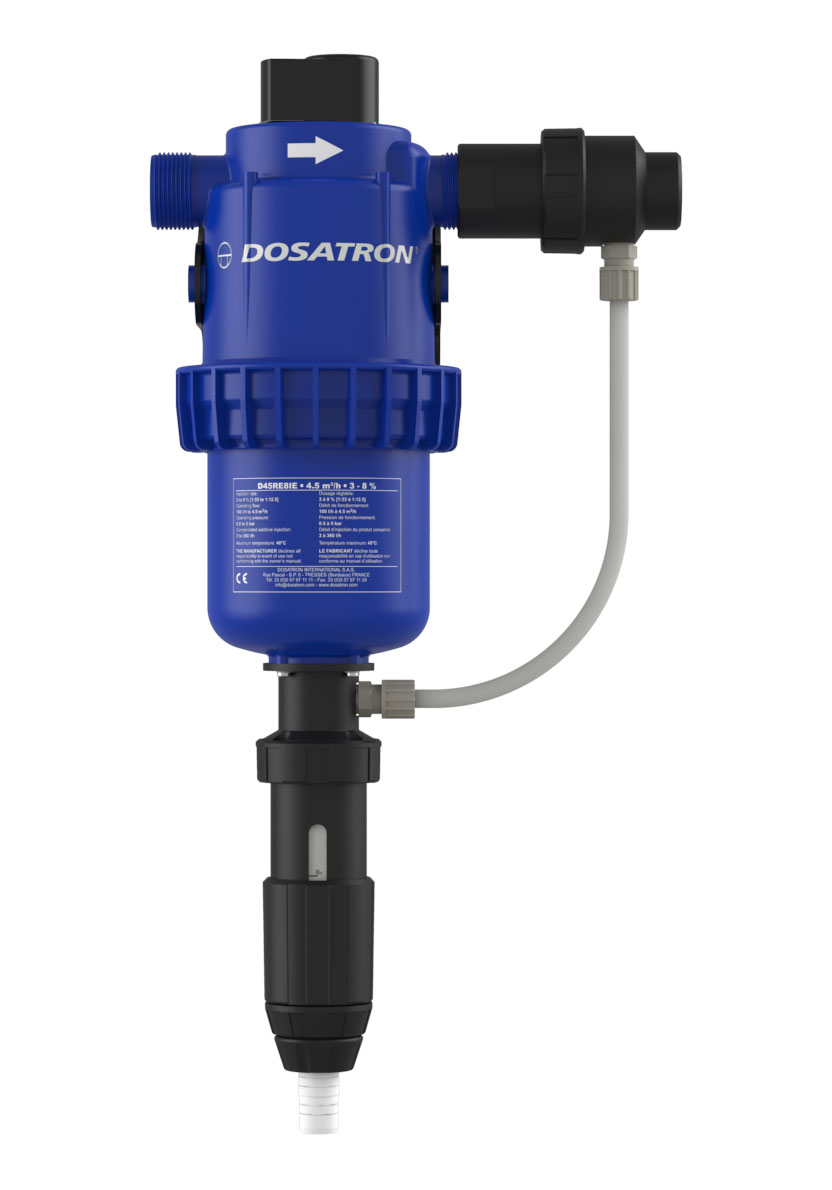

Dosatron D45RE8IE AF proportional dispenser with external injection for applications with a flow rate up to 100 l/h - 4.5m³/h and a dosing range of 3 - 8%.
