Dosatron D25RE4 VF 2,5m³/h 0,5-4%

€808.11*

Delivery time: 1 - 5 days

St
Product number: 04617

Dosatron D25RE4 VF proportional dispenser for applications with a flow rate up to 2,5m³/h and a dosing range of 0,5 - 4%.

Dosatron D25RE4 VF 2,5m³/h 0,5-4%

The proportional dispenser Dosatron D25RE4VF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D25RE4.

Technical specifications:

  • working range (water flow): 10 l/h - 2.5m³ l/h
  • dosing range: 0,5 - 4% / 1: 200 -1: 25
  • operating water pressure: 0,3 - 6bar
  • operating water temperature: 5 - 40 ° C
  • pressure loss: 0,3 - 1,4bar
  • water connections: 3/4 "external thread
  • VF sealant for acid media
  • version with bypass switch (on / off of dosing) and venting

In order to cover the wide range of applications and dosing media, the Dosatron proportional dispensers D25 are also available in other designs and with different sealing- and housing materials. If you would like us to help you with your choice, simply send us the maximum flow rate, the desired dosing rate and the safety data sheet of your medium by e-mail.

Properties "Dosatron D25RE4 VF 2,5m³/h 0,5-4% "
Dosing rate: up to 5%
Funding volume: up to 2,5m³/h
Manufacturer: Dosatron
Manufacturer number: D25RE4
Working pressure: up to 6bar
CD073VF - kit dosing part in VF for D25RE4

CD073VF - kit dosing part in VF execution

This spare part is used in the Dosatron dosing unit: D25RE4

€196.40*
Product number: CD073VF
EM004VF - motor sealing kit in VF for D25 series

EM004VF - motor sealing kit in VF execution

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€36.68*
Product number: EM004VF
M238S - Dosatron motor springs for the D25 series

M238S - Dosatron motor springs for the D25 series. Attention: 2 springs are required per unit!

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€10.06*
Product number: M238S
MP104 - suction part 12 x 16mm

MP104 - Suction part 12 x 16mm

This spare part is used in the Dosatron proportional dispensers: D45RE15, D45RE3, D25RE2, D25RE4

€45.46*
Product number: MP104
MP177VF - kit tipping device in VF D25 series

MP177VF - kit tipping device in VF D25 series

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€50.48*
Product number: MP177VF
MP178VF - partial kit carrier exhaust valve in VF for D25 series

MP178VF - partial kit carrier exhaust valve in VF for D25 series

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€41.23*
Product number: MP178VF
MPDI041 - venting kit complete with venting bellows

MPDI041 - venting kit complete with venting bellows

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€11.20*
Product number: MPDI041
MPDI045 - partial kit bypass for D25 series

MPDI045 - partial kit bypass for D25 series

This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€51.30*
Product number: MPDI045
MPDI211 - Dosatron partial kit suction filter 12 x 16mm
MPDI211 - Dosatron part kit suction filter 12 x 16mm

This spare part is used in the Dosatron proportional dispensers: D3RE2, D3RE5, D25RE4, D25RE5, D25RE10 , D8R

€26.30*
Product number: MPDI211
MPDI211IND - Dosatron partial kit suction filter 6 x 8mm with check valve
MPDI211IND - Dosatron partial kit suction filter 6 x 8mm with check valve

This spare part is used in the Dosatron proportional dispensers: D3RE2, D3RE5, D25RE4, D25RE5, D25RE10

€116.88*
Product number: MPDI211IND
P041 - wall bracket for D25 series

P041 - wall bracket for D25 series

This spare part is used in the Dosatron proportional dispensers of the D25 series

€5.19*
Product number: P041
P214 - metering body and seal kit VF
P214 - metering body and seal kit VF

This spare part is used in the Dosatron dosing unit: D25RE4

€12.98*
Product number: P214
P421 - motor pistons for D25 series

P421 - motor pistons for D25 series

This spare part is used in the Dosatron proportional dispensers of the D25 series

€45.15*
Product number: P421
P428 - plunger for D25 series

P428 - plunger for D25 series

This spare part is used in the Dosatron proportional dispensers of the D25 series

€21.77*
Product number: P428
PC061VF - subassembly motor in VF for D25RE2

PC061VF - subassembly motor in VF for D25RE2

This spare part is used in the Dosatron dosing unit: D25RE2

€174.61*
Product number: PC061VF
PJ079 - lower housing section in blue with sealing

PJ079 - Lower housing section in blue with sealing

This spare part is used in the Dosatron proportional dispensers: D25RE4, D25RE1500, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€98.88*
Product number: PJ079
PJ085VF - case cover in blue with ventilation and seal in VF execution

PJ085VF - case cover in blue with ventilation and seal in VF execution

This spare part is used in the Dosatron proportional dispensers: D25RE4, D25RE1500, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE

€55.31*
Product number: PJ085VF
PJ092VVF - subassembly kit suction valve in VF execution

PJ092VVF - kit valve and ribbed end piece in VF execution

This spare part is used in the Dosatron proportional dispensers: D25RE4, D45RE15IE, D45RE3IE

€57.48*
Product number: PJ092VVF

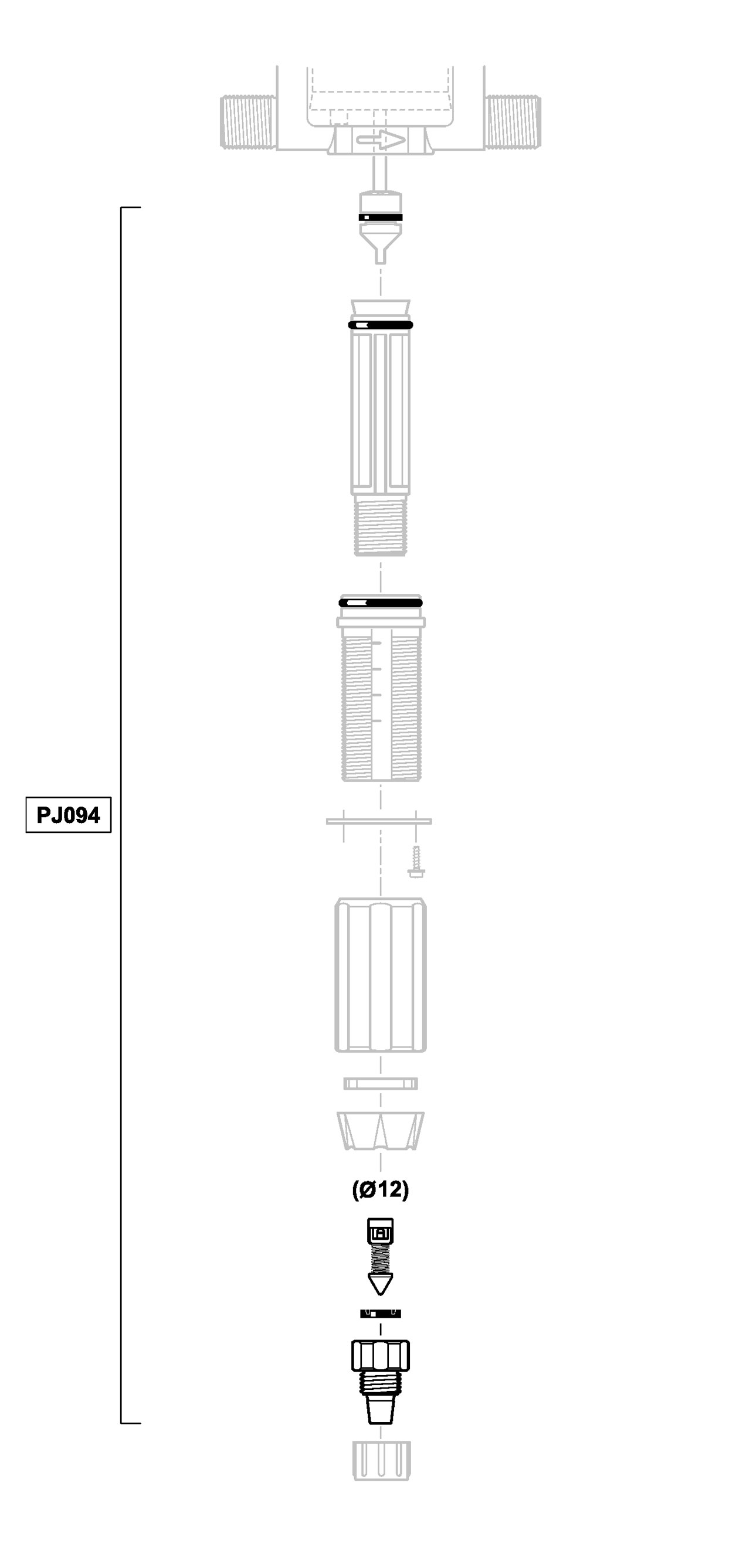

PJ094VF - kit dosing seals + valve + ribbed end piece in VF for D25RE4

PJ094VF - kit dosing seals + valve + ribbed end piece in VF for D25RE4

This spare part is used in the Dosatron proportional dispenser: D25RE4

€100.01*
Product number: PJ094VF
