Dosatron D25RE2 VFP for peracetic acid and hydrogen peroxide 2,5m³/h 0,2-2%
Dosatron D25RE2 VFP for disinfection applications 2.5m³/h 0.2-2%
Dosatron proportional dosing unit D25RE2 VFP for the precise dosing of liquids. The dosing unit is suitable for a flow rate of 10 litres/h up to a maximum of 2.5m³/h. In this working range, liquid media can be dosed in a ratio of 0.2-2%. The permissible system pressure is 0.3-6 bar.The D25RE2 VFP dosing unit has been specially developed for dosing peracetic acid and hydrogen peroxide. These acids are particularly suitable for the disinfection and cleaning of surfaces.
Applications:
- animal fattening
- surface disinfection
- cleaning
Technical data:
- working range (water flow): 10 l/h - 2.5m³/h
- dosing range: 0.2 - 2%
- operating water pressure: 0.3 - 6 bar
- operating water temperature: 5 - 40°C
- pressure loss: 0.3 - 1.9 bar
- water connections: 3/4" external thread
| Dosing rate: | up to 2% |
|---|---|
| Funding volume: | up to 2,5m³/h |
| Manufacturer: | Dosatron |
| Working pressure: | up to 6bar |
CD072VF - kit dosing part in VF execution
This spare part is used in the Dosatron dosing unit: D25RE2
EM004VF - motor sealing kit in VF execution
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
M238S - Dosatron motor springs for the D25 series. Attention: 2 springs are required per unit!
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MP004 - Suction part 6 x 9mm
This spare part is used in the Dosatron proportional dispensers: D07RE125, D07RE5, D100R, D200RE, D400RE, D25RE2 (AO, IE)
MP177VF - kit tipping device in VF D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MP178VF - partial kit carrier exhaust valve in VF for D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MPDI041 - venting kit complete with venting bellows
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MPDI045 - partial kit bypass for D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
This spare part is used in the Dosatron proportional dispensers: D25RE09, D25RE2
P041 - wall bracket for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series
P421 - motor pistons for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series
P428 - plunger for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series

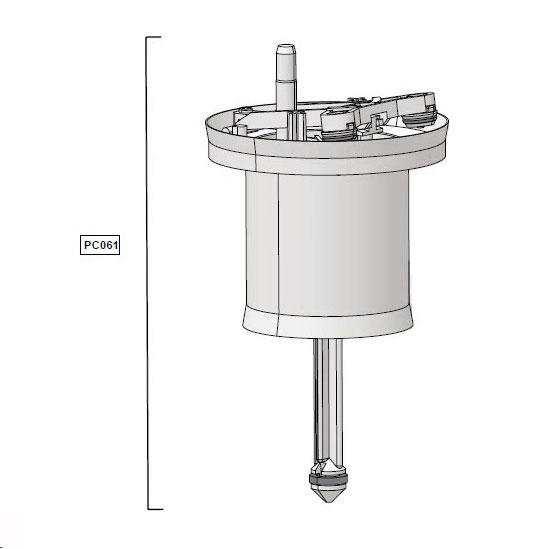

PC061VF - subassembly motor in VF for D25RE2
This spare part is used in the Dosatron dosing unit: D25RE2
PJ079P - Lower housing section in blue with sealing
This spare part is used in the Dosatron proportional dispensers: D25RE2AO, D25RE09AO and other with PVDF case.
PJ085P - case cover in PVDF with ventilation and seal
This spare part is used in the Dosatron proportional dispensers: D25RE02AO, D25RE09AO and other with PVDF case

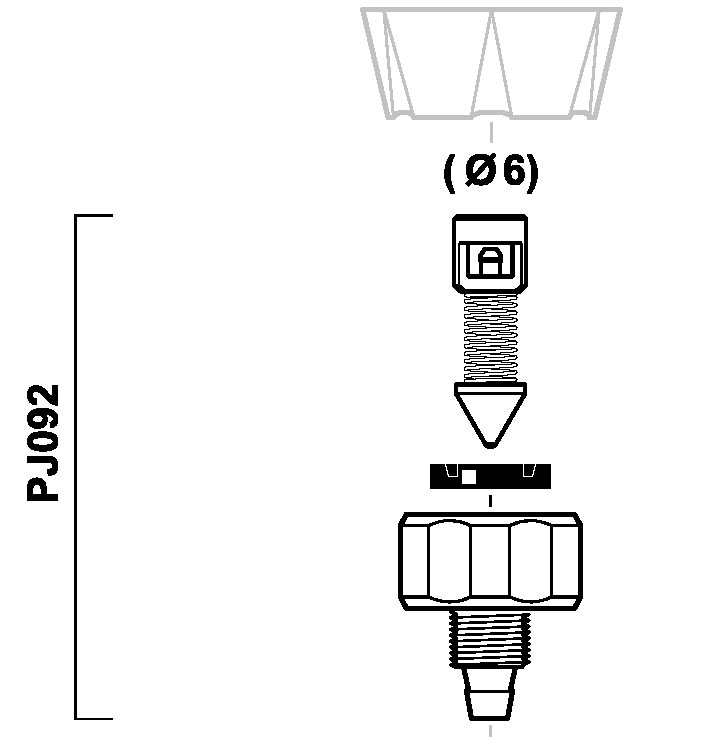

PJ092VF - kit valve and ribbed end piece in VF execution
This spare part is used in the Dosatron proportional dispensers: D07RE5, D07RE125, D25RE2, D25RE2IE, D25RE4, D25RE2A0

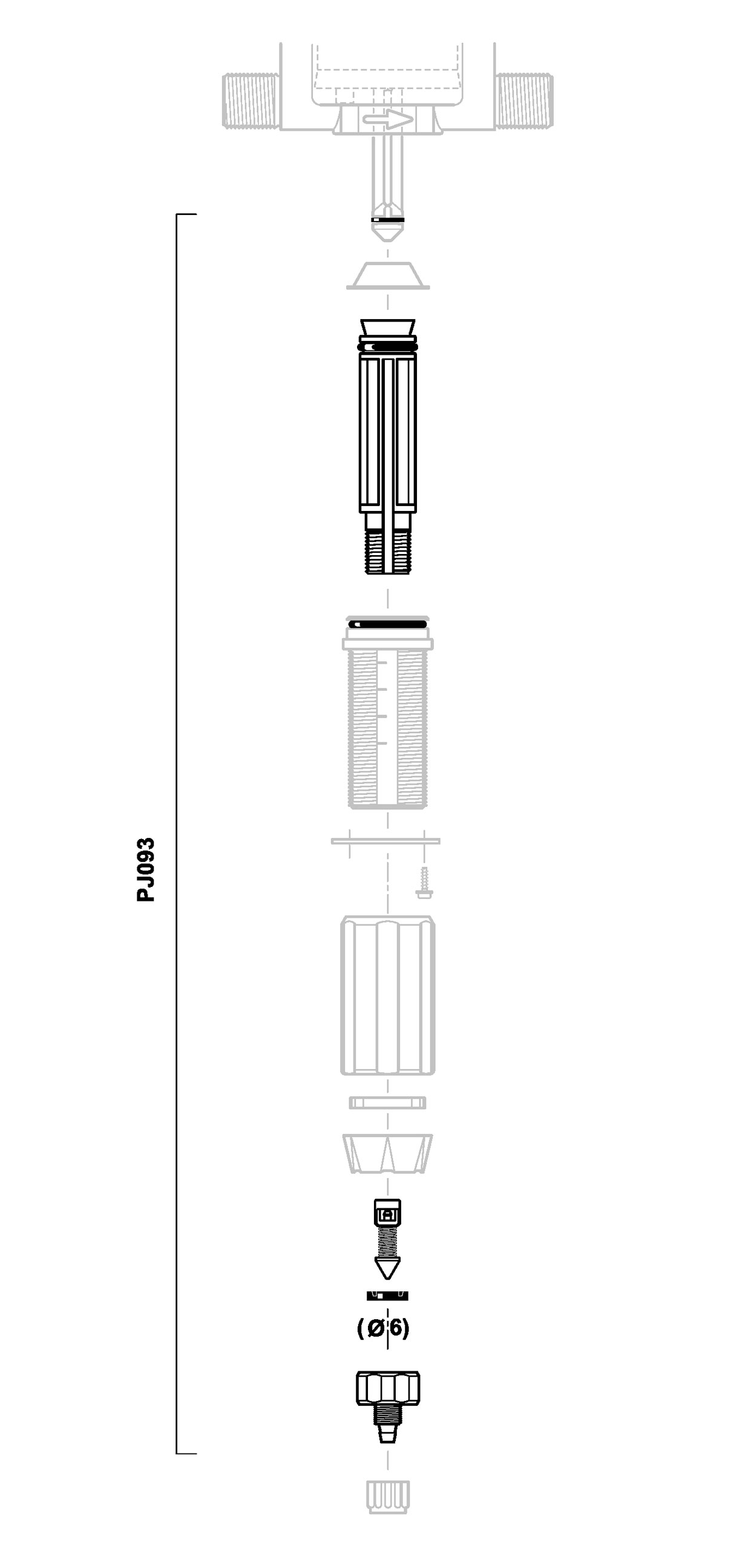

PJ093VF - kit dosing seals + valve + ribbed end piece in VF for D25RE2
This spare part is used in the Dosatron proportional dispenser: D25RE2, D25RE2AO
This spare part is used in the Dosatron dosing unit: D25RE2
