Dosatron D45RE8IE VF 4,5m³/h 3-8%
Dosatron D45RE8IE VF 4,5m³/h 3-8%
The proportional dispenser Dosatron D45RE8IEVF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D45RE8IE.The dosing pump is equipped with an external injection. As a result, the medium is metered in at the outlet of the dosing pump and does not reach the motor area. This makes it possible to dose particularly aggressive media with the Dosatron D45RE8IE.
Technical specifications:
- working range (water flow): 100 l/h - 4.5m³/h
- dosing range: 3 - 8% / 1: 33-1: 12.5
- operating water pressure: 0,5 - 5bar
- operating water temperature: 5 - 40 ° C
- pressure loss: 0,3 - 1,4bar
- water connections: 3/4 "external thread
- with external injection
- VF sealant for acid media
- version with bypass switch (on / off of dosing) and venting
In order to cover the wide range of applications and dosing media, the Dosatron proportional dispensers D45 are also available in other designs and with different sealing- and housing materials. If you would like us to help you with your choice, simply send us the maximum flow rate, the desired dosing rate and the safety data sheet of your medium by e-mail.
| Dosing rate: | up to 10% |
|---|---|
| Execution: | external injection |
| Funding volume: | up to 5m³/h |
| Manufacturer: | Dosatron |
| Working pressure: | up to 5bar |
This spare part is used in the Dosatron dosing unit: D45RE8IE
This spare part is used in the Dosatron proportional dispensers: D45RE15, D45RE3, D45RE3000, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
M221 - Dosatron motor springs for the D45 series. Attention: 2 springs are required per unit!
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
MP096 - upper housing part for Dosatron D45 series
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
MPDI013 - suction part 20 x 27mm
This spare part is used in the Dosatron proportional dispensers: D3RE10V, D3RE25IE, D8R150, D45RE8, D45RE8IE,D25RE5, D25RE10, D8RE5, D9RE5
This spare part is used in the Dosatron proportional dispensers: D3RE10V, D3RE25V
P221 - pump body screw connection D45 series
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
P222 - wall bracket for D45 series
This spare part is used in the Dosatron proportional dispensers of the D45 series
PC113VF - subassembly motor in VF for D45RE8IEVF
This spare part is used in the Dosatron dosing unit: D45RE8IEVF
PJ063 - lower housing section in blue with sealing
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE

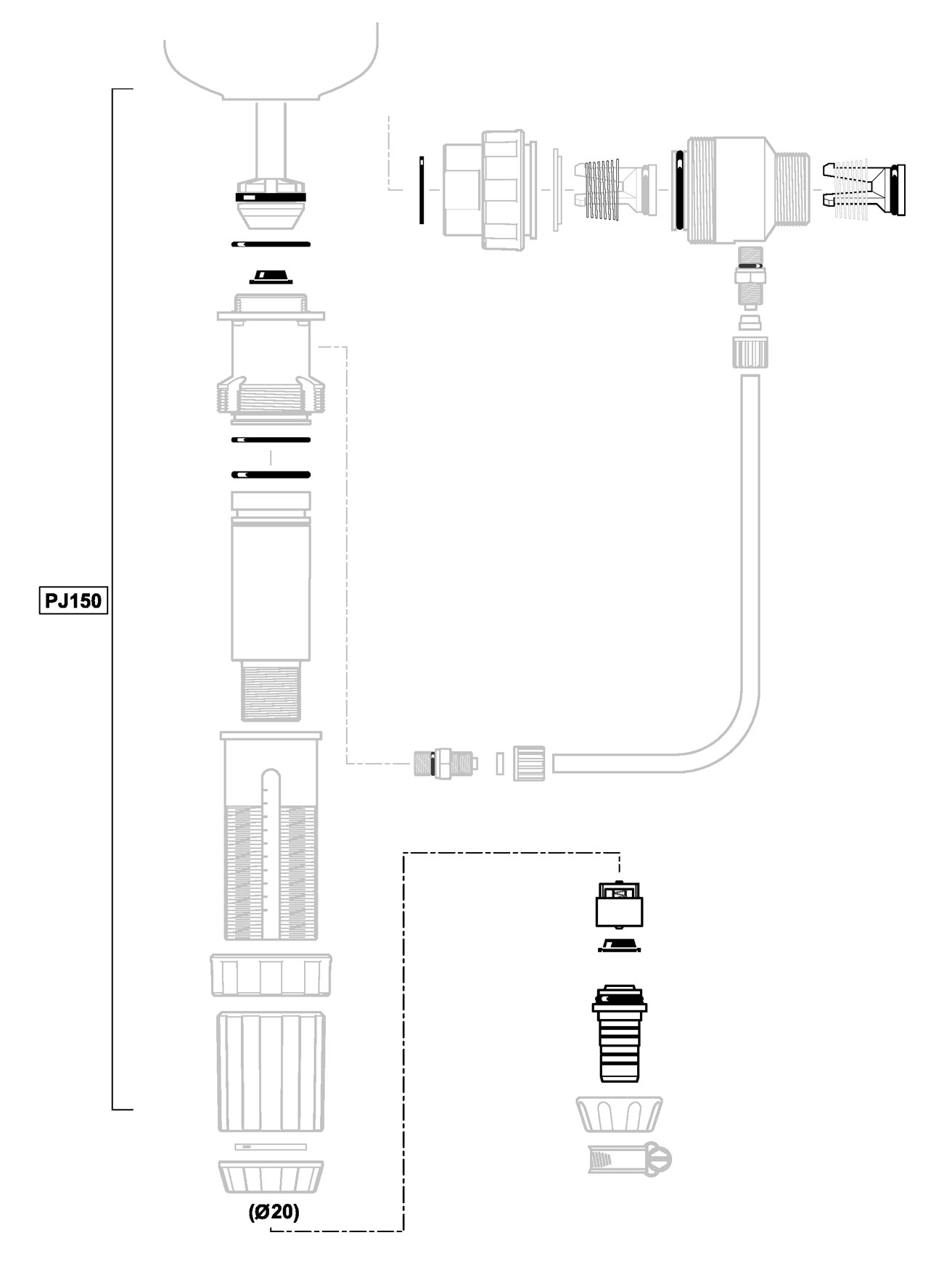

PJ150VF - kit dosing seals + valve + ribbed end piece in VF for D45RE8IE
This spare part is used in the Dosatron proportional dispenser: D25RE8IE
PJDI007VF - kit valve and ribbed end piece in VF execution
This spare part is used in the Dosatron proportional dispensers: D45RE8, D45RE8IE, D25RE10VVF
