Dosatron D45RE3000 VF 4,5m³/h 0,03-0,1%
Dosatron D45RE3000 VF 4,5m³/h 0,03-0,1%
The proportional dispenser Dosatron D45RE3000VF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D45RE3000.Technical specifications:
- working range (water flow): 100 l/h - 4.5m³/h
- dosing range: 0.03 - 0.1% / 1: 3000-1: 1000
- operating water pressure: 0,5 - 5bar
- operating water temperature: 5 - 40 ° C
- pressure loss: 0,3 - 1,4bar
- water connections: 3/4 "external thread
- VF Sealant for acid media
- version with bypass switch (on / off of dosing) and venting
In order to cover the wide range of applications and dosing media, the Dosatron proportional dispensers D45 are also available in other designs and with different sealing- and housing materials. If you would like us to help you with your choice, simply send us the maximum flow rate, the desired dosing rate and the safety data sheet of your medium by e-mail.
| Dosing rate: | up to 1% |
|---|---|
| Funding volume: | up to 5m³/h |
| Manufacturer: | Dosatron |
| Working pressure: | up to 5bar |
CD075VF - kit metering section in VF version
This spare part is used in the Dosatron proportional dispenser: D45RE3000
This spare part is used in the Dosatron proportional dispensers: D45RE15, D45RE3, D45RE3000, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
M221 - Dosatron motor springs for the D45 series. Attention: 2 springs are required per unit!
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
MP096 - upper housing part for Dosatron D45 series
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
MPDI005 - Suction part 12 x 16mm
This spare part is used in the Dosatron proportional dispensers: D25RE09, D25RE1500, D25RE09A0, D45RE3000
This spare part is used in the Dosatron proportional dispensers: D25RE09, D25RE2
P221 - pump body screw connection D45 series
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE
P222 - wall bracket for D45 series
This spare part is used in the Dosatron proportional dispensers of the D45 series
PC063VT - subassembly motor in VT for D45RE3000
This spare part is used in the Dosatron dosing unit: D45RE3000
PJ063 - lower housing section in blue with sealing
This spare part is used in the Dosatron proportional dispensers: D45RE3000, D45RE15, D45RE3, D45RE8, D45RE15IE, D45RE3IE, D45RE8IE

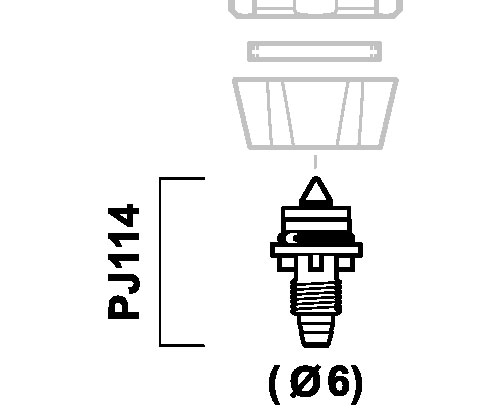

PJDI114VF - subassembly kit suction valve in VF for D45RE3000
This spare part is used in the Dosatron proportional dispensers: D45RE3000
PJ116VF - kit dosing seals + valve + ribbed end piece in VF for D45RE3000
This spare part is used in the Dosatron proportional dispenser: D45RE3000
