Dosatron D3RE25IE VF 2,0m³/h 5-25%
Dosatron D3RE25IE VF proportional dispenser with external injection for applications with a flow rate up to 2m³/h and a dosing range of 5 - 25%.
Dosatron D3RE25IE VF 2,0m³/h 5-25%
The proportional dispenser Dosatron D3RE25IE VF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D3RE25IE.
The dosing pump is equipped with an external injection. As a result, the medium is metered in at the outlet of the dosing pump and does not reach the motor area. This makes it possible to dose particularly aggressive media with the Dosatron D3RE25IE.
Technical specifications:
- working range (water flow): 10 l/h - 2.0m³/h
- dosing range: 5 - 25%
- operating water pressure: 0,3 - 4bar
- operating water temperature: 5 - 40 ° C
- pressure loss: 0,2 - 2,3bar
- water connections: 3/4 "external thread
- with external injection
- VF sealant for acid media
- version with bypass switch (on / off of dosing) and venting
In order to cover the wide range of applications and dosing media, the Dosatron proportional dispensers D3 are also available in other designs and with different sealing- and housing materials. If you would like us to help you with your choice, simply send us the maximum flow rate, the desired dosing rate and the safety data sheet of your medium by e-mail.
| Dosing rate: | over 10% |
|---|---|
| Execution: | external injection |
| Funding volume: | up to 2m³/h |
| Manufacturer: | Dosatron |
| Manufacturer number: | D3RE25IE VF |
| Working pressure: | up to 4bar |

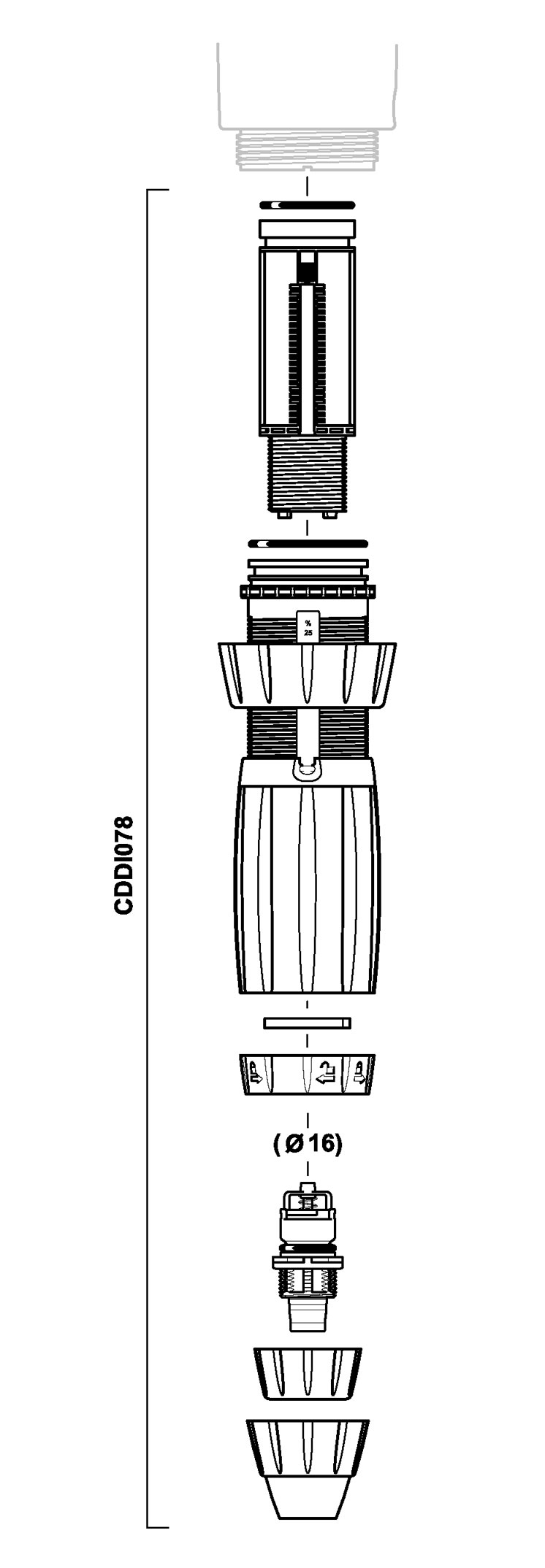

CDDI078VF - kit dosing part in VF execution
This spare part is used in the Dosatron dosing unit: D3RE25
EMDI006VF - Motor sealing kit in VF execution
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
JDI001 - o-ring housing seal
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 und D3RE25
MPDI184 - partial kit bypass
This spare part is used in the Dosatron proportional dispensers: D25, D3, D8RE and D9RE
MPDI186 - partial kit upper pump housing + vent + seal D3 series
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
MPDI189 - suction part 16 x 22mm
This spare part is used in the Dosatron proportional dispensers: D3RE5V, D3RE10, D8RE2
MPDI196 - complete assembly set by-pass
This spare part is used in the Dosatron proportional dispensers: D3, D8 and D9 series
This spare part is used in the Dosatron proportional dispensers: D3RE10V, D3RE25V
PCDI030VF - subassembly motor Dosatron in VF for D3 series
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 und D3RE25
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE2
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE2
PDI700 - partial kit vent protection cap
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
PDI703 - wall bracket for Dosatron D3 series
This spare part is used in the Dosatron proportional dispenser: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
PDI748 - hose nut
This spare part is used in the Dosatron proportional dispensers: D3RE10 , D3RE25
PJDI113 - Subassembly of lower pump housing with seal and wall bracket
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
PJDI118VF - subassembly kit suction valve in VF execution
This spare part is used in the Dosatron proportional dispensers: D3RE5VV, D3RE10, D3RE25IE, D8RE2, D9RE2
PPDI034 - Kit upper and lower sealing lips of the piston and thermoplastic spring
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
