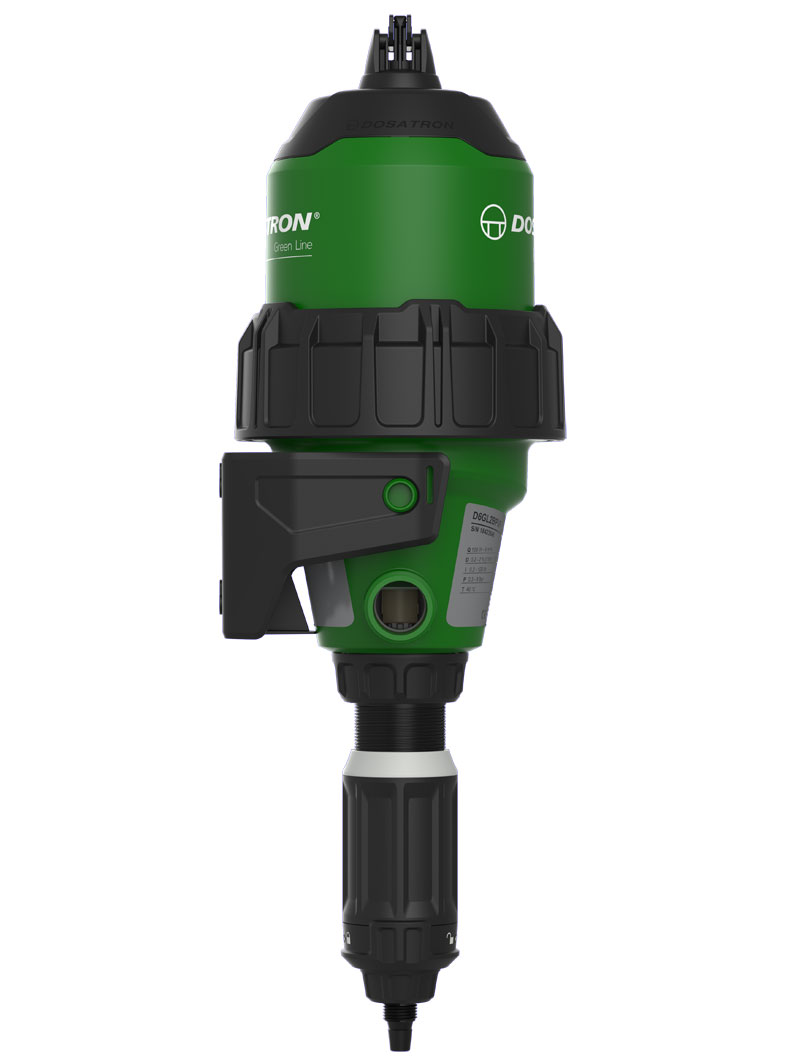

Dosatron D6GL2VF BP 6m³/h 0,2-2%
Proportional dispenser Dosatron D6GL2 VF BP for applications with a flow rate of up to 6 m³/h and a dosing range of 0.2-2%.
Dosatron D6GL2VF BP 6.0m³/h 0.2-2%
The new design of the D6 series impresses with its simplified motor structure. No metal parts are used inside, leading to improved chemical resistance.

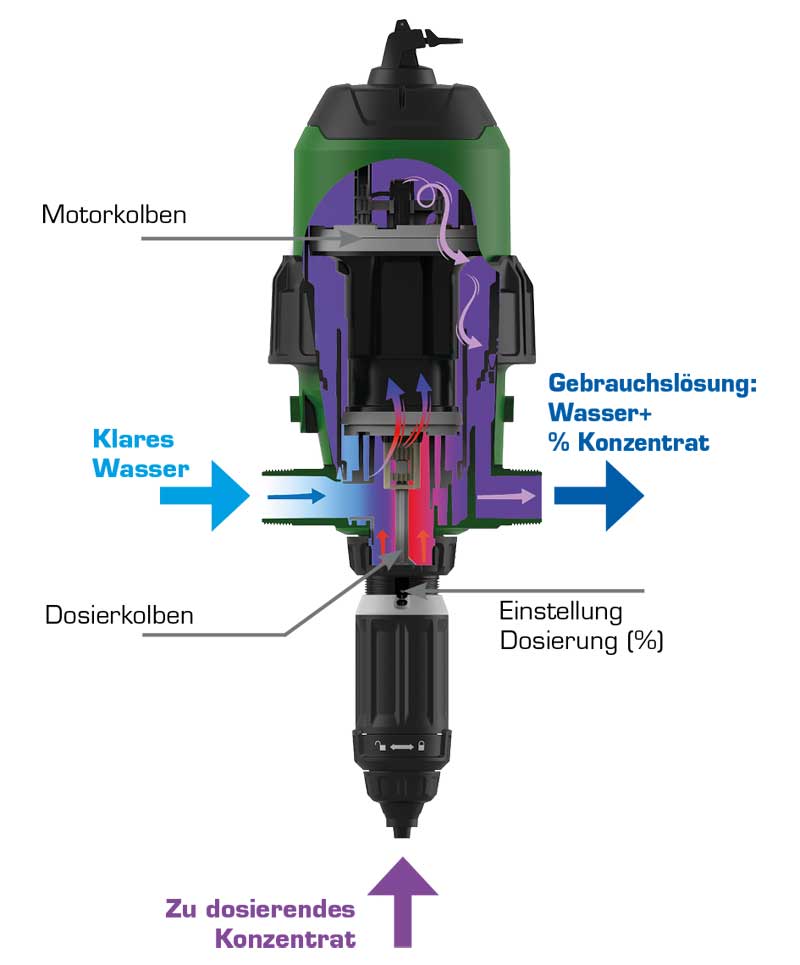

The proportional dispenser Dosatron D6GL2VF is ideal for the precise dosing of liquids. The doser operates without electricity and is powered solely by the flowing water. The motor drives a piston in the dosing adjustment, which delivers the medium to be dosed into the device. Here, it mixes with the flowing water. Thanks to the purely volume-proportional drive, the doser works very precisely and reliably even with pressure fluctuations. The desired dosing rate can be easily adjusted on the dosing setting of the D6GL2.
The D6GL2VF doser is suitable for a flow rate of 100 l/h up to a maximum of 6 m³/h. Within this working range, liquid media can be added in a ratio of 0.2 - 2%. The permissible system pressure is 0.3-8 bar.
Technical Data:
- Working range (water flow): 100 l/h - 6 m³/h
- Dosing range: 0.2 - 2.0%
- Operating water pressure: 0.3 - 8 bar
- Operating water temperature: 5 - 40°C
- Pressure loss: 0.2 - 2.3 bar
- Water connections: 1 1/4" male thread
- VF sealing material for acidic media (to clarify compatibility, please send us the safety data sheet of the medium)
To cover the wide range of applications and dosing media, the Dosatron dosers of the D6 series are also available in other versions and with different materials. We are happy to assist you in selecting the proportional doser that suits your needs.
Manufacturer: Dosatron International S.A.S., Rue Pascal – B.P. 6, 33370 Tresses - France, info@dosatron.com
| Dosing rate: | up to 2% |
|---|---|
| Funding volume: | up to 6m³/h |
| Manufacturer: | Dosatron |
| Manufacturer number: | D6GL2VFBP |
| Working pressure: | up to 8bar |
